Hot Type Electronic Plug Energy Meter / Round Single Phase Watt Hour Meter

Product Categories

Yueqing Tainihan Electric Technology Co., Ltd..

Contact Now

Name: Hot Type Electronic Plug Energy Meter Round Single Phase Watt Hour Meter
Brand: TYNEHAM
Price: 1 USD

Brand Name : TYNEHAM

Model Number : DDS - 1

Place of Origin : WENZHOU, CHINA

MOQ : 100 PCS

Price : Negotiate

Supply Ability : 30000 PCS Per Month

Packaging Details : Foam box inside, carton outside 4 Pcs / Carton

Voltage : 240V

Frequency : 50 Hz or 60 Hz

HS Code : 90283010

Theory : Electronic Meter

Accuracy class : 1.0

Constant : 555~1600 imp/kWh

Contact Now

DDS - 1 Single Phase Two Wire Socket Energy Meter New Type Energy Meter Hot Type Round Meter

RODUCT INFORMATION

Display: Digital
Usage: Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, ANSI Standard Socket Meter
Theory: Static Meter
Measured Signal: Pulse Peak

SPECIFICATIONS

Application Standard	ANSIC 12.10, IEC62053
Accuracy Class	Class 0.5, Class1.0
Form	1S, 2S
Current	Class 100; Class200
Rated Voltage	120VAC; 240VAC
Limit Voltage	0.87Vn to 1.2Vn
Frequency	60Hz
Operating Temperature Range	-25~+60ºC
Storage Temperature Range	-30~+80ºC
Current Circuit Power Consumption	<0.3VA
Voltage Circuit Power Consumption	<0.8W/3.5VA
Insulation Strength	4kV 50Hz 1minute
Striking Potential	6kV 1.2/50us
Short-circuit Current	30Imax
Pulse Experiment	4kV (IEC801 4)

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement.

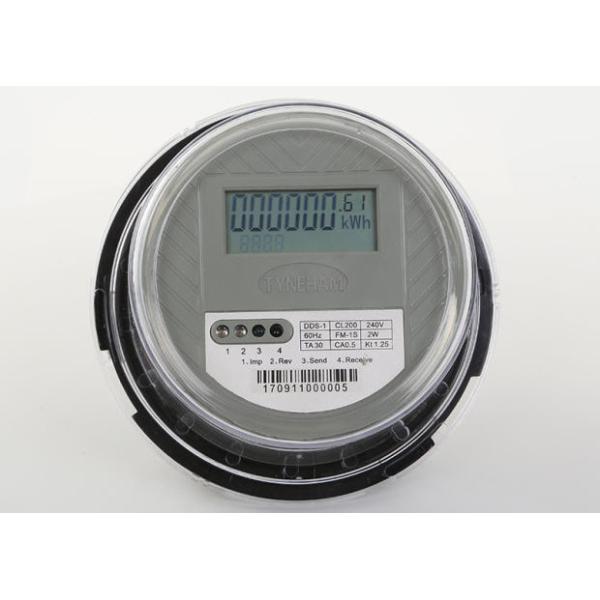

APPEARANCE

Hot Type Electronic Plug Energy Meter / Round Single Phase Watt Hour Meter
