High Accuracy Three Phase Energy Meter / 3 Phase Mechanical Kwh Meter

Name: High Accuracy Three Phase Energy Meter 3 Phase Mechanical Kwh Meter
Brand: TYNEHAM
Price: 1 USD

Brand Name : TYNEHAM

Model Number : DT862

Place of Origin : WENZHOU, CHINA

MOQ : 100 PCS

Price : Negotiate

Supply Ability : 50000 PCS / Month

Packaging Details : Foam box inside, carton outside 20 Pcs / Carton

Name : 3 Phase Mechanical Kwh Meter

Frequency : 50HZ/60HZ

Operating Temperature : -25℃~+50℃

Type of connect : Direct connect

Color : Black

Standard : IEC60521

Contact Now

DT862 3 phase 4 wire electromechanical kwhmeter Transparent Cover kilowatt-hour meter

PRODUCT INFORMATION

DT862 three phase electromechanical front board installed active energy meter is a kind of new style three phase four wire active energy meter,it is on the basis of original single phase electromechanical meter,and fully absord new technologies about electromechanical meter from domestic and abroad,the meter completely accord with relevant technical requirement of class 2 single phase active energy meter stipulated in international standard IEC62053-11,3 Phase Mechanical Kwh Meter can actually and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net,3 Phase Mechanical Kwh Meter is use for setting indoor or out door meter box,and it can display total energy consumption by drum wheel mechanical counter.It has following features:High overload,power loss,long-life,specious appearance,etc.

SPECIFICATIONS

1	Meter type	DT862 3 Phase Mechanical Kwh Meter
2	Standards	IEC60521 ,IEC514
3	Accuracy (according to IEC60521)	Transformer operated: Class 1			Direct connected: Class 2
4	Average service life (MTTF)	10 years
5	Basic current(Ib) A	1.5	3	5	5	10		15		20		30
6	Maximum current(Imax) A	6	6	10	20	40	60	60	100	80	100	100
7	Rating current of transformer In	5A			Direct connection
8	Meter constant r/kWh	600	450	200	200	100		60		50		30
9	Over load capacity %Ib	400	200		400	500	400	400	667	400	500	333
10	Rated load speed (r/min) at unity PF, 3×220/380V, Ib	9.9	14.9	11				9.9		11		9.9
11	Reference voltage Un	3×57.7/100V, 3×220/380V, 3×230/400V, 3×240/415V
12	Reference frequency fn	50 Hz,60 Hz
13	Power losses in voltage circuit at 50 Hz Un	1.0 W/4.5 VA
14	Power losses in current circuit at 50Hz Un Ib	<0.5 VA
15	Non-running with no-load	0.8~1.1Un
16	Staring current	0.4%Ib			0.5%Ib

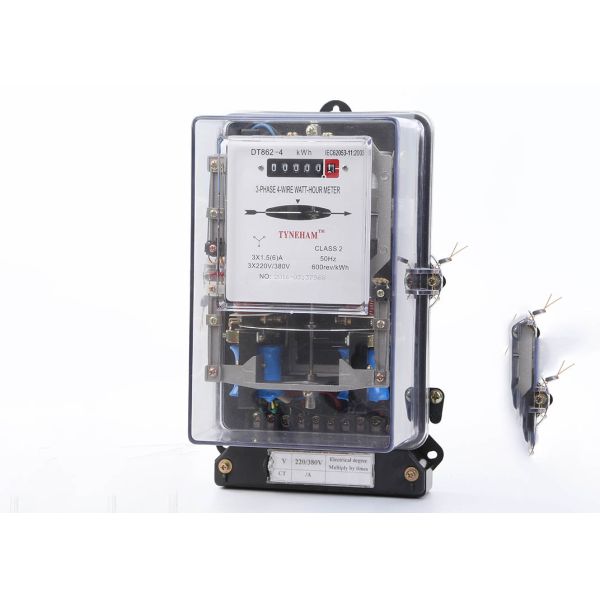

PRODUCT PICTURE

High Accuracy Three Phase Energy Meter / 3 Phase Mechanical Kwh Meter
